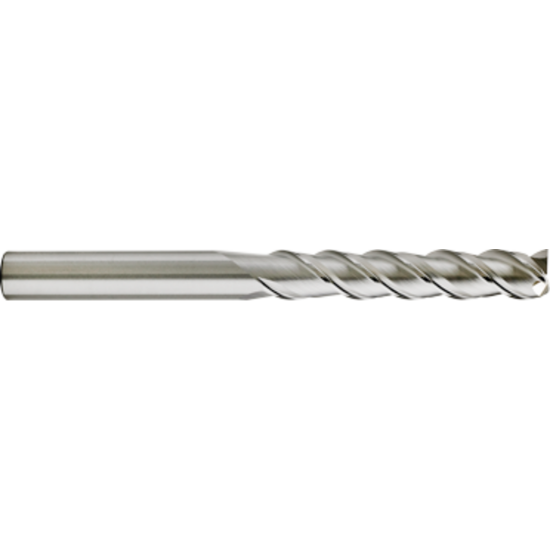

GORILLA MILL GMA58FHL3 DIA 5/8" SH 0.6250 LOC 1.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMA58FHL3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20195
Delivery date: 3-5 days
$102.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Helix Angle Variable
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
Length Type Long
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
