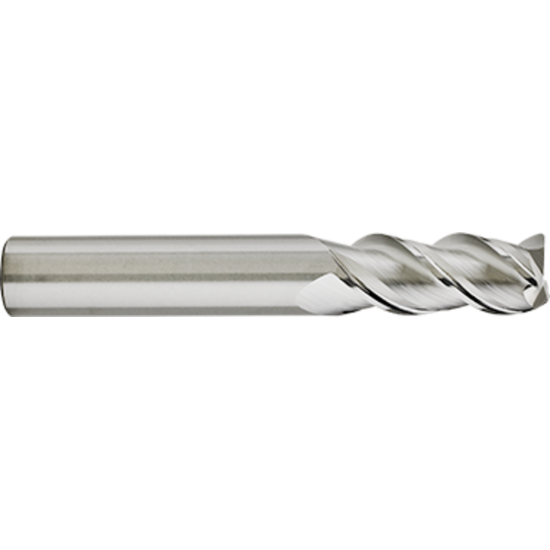

GORILLA MILL GMA516RL3030 DIA 5/16" SH 0.3125 LOC 1.50 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM SILVERBack

ISO: GMA516RL3030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20190
Delivery date: 3-5 days
$34.06

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Package Size 1
Shipping State Wisconsin
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Corner Radius 0.0300 0.76MM
Length Of Cut 1.5000 38.10MM
Length Type Long
Machine Side Connection Size 0.3125 7.94MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
