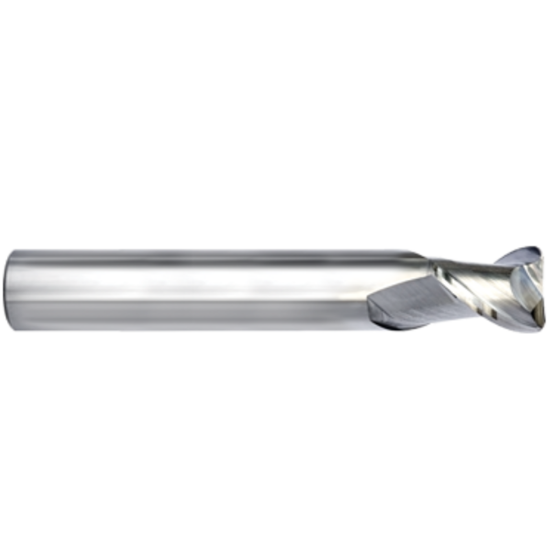

GORILLA MILL GMA316R2015 DIA 3/16" SH 0.1875 LOC 0.6250 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM SILVERBack

ISO: GMA316R2015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20130
Delivery date: 3-5 days
$29.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Wisconsin
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.1875 4.76MM
Length Type Standard
Overall Len 3.0000 76.20MM
Helix Angle Variable
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
