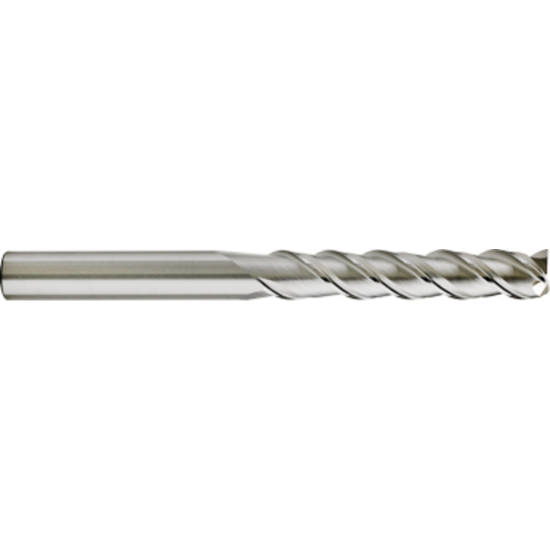

GORILLA MILL GMA2500MMF3 DIA 25MM SH 0.9843 LOC 1.4961 OAL 3.9370 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMA2500MMF3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20124
Delivery date: 3-5 days
$236.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Wisconsin
Dimensional Specifications
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Flutes/Inserts 3
Helix Angle Variable
Cutter Dia 0.9844 25.00MM - 63/64
Inch/Metric Metric
Single/Double End Single End
Length Of Cut 1.4961 38.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
