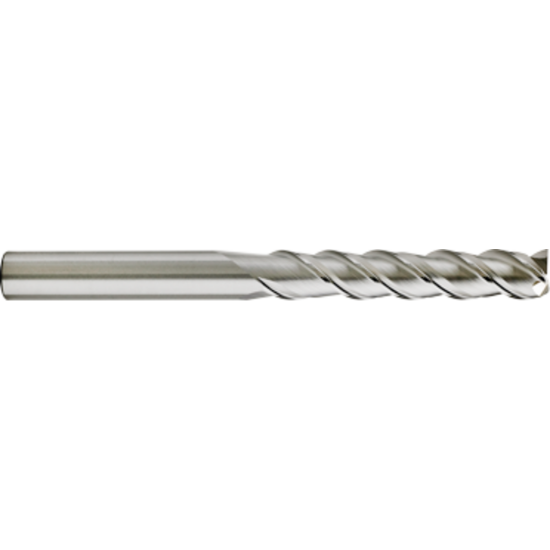

GORILLA MILL GMA2000MMF3 DIA 20MM SH 0.7874 LOC 1.4961 OAL 3.9370 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMA2000MMF3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20119
Delivery date: 3-5 days
$138.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Wisconsin
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Length Type Standard
Overall Len 3.9370 100.00MM
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7874 20.00MM
Single/Double End Single End
Helix Angle Variable
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
