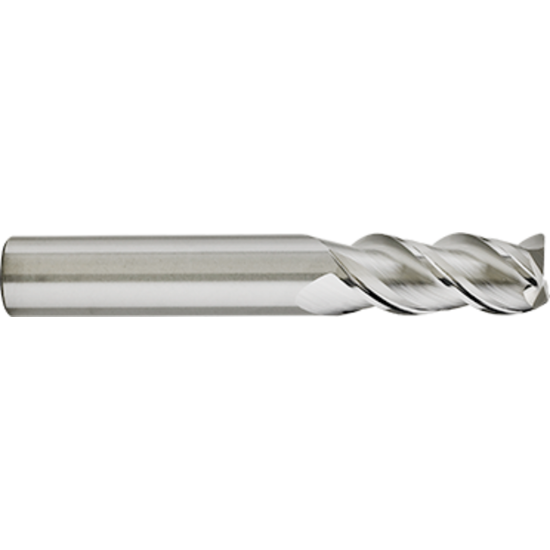

GORILLA MILL GMA14RL3030 DIA 1/4" SH 0.2500 LOC 1.50 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM SILVERBack

ISO: GMA14RL3030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20105
Delivery date: 3-5 days
$34.06

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Copy Milling, Side Milling, Slot Milling, Face Milling, Profile Milling
Made In USA Yes
Shipping State Wisconsin
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Overall Len 4.0000 101.60MM
Length Type Long
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Helix Angle Variable
Corner Radius 0.0300 0.76MM
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
