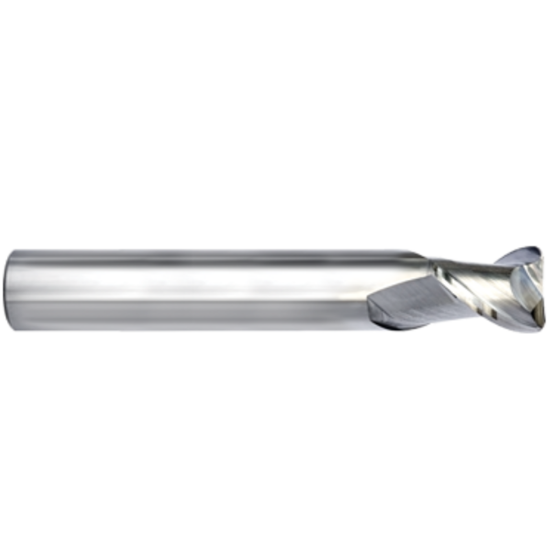

GORILLA MILL GMA12R2120 DIA 1/2" SH 0.50 LOC 1.2500 OAL 3.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM SILVERBack

ISO: GMA12R2120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20073
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Wisconsin
Package Size 1
Dimensional Specifications
Overall Len 3.5000 88.90MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Flutes/Inserts 2
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Corner Radius 0.1200 3.05MM
Cutter Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
