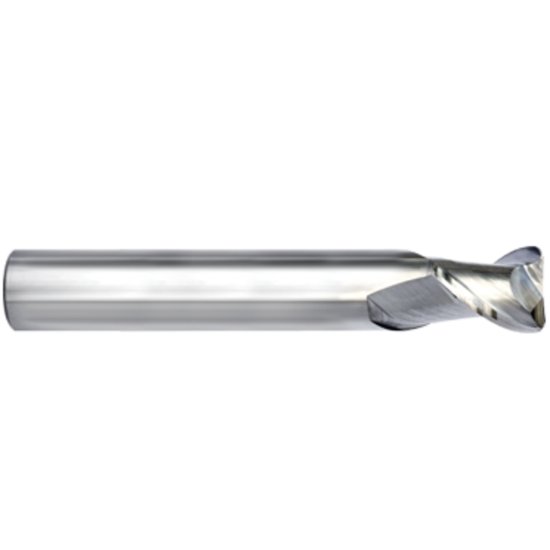

Picture of Gorilla Mill GMA12R2120 Dia 1/2" SH 0.50 LOC 1.2500 OAL 3.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.1200 3.05mm SILVERBack

Gorilla Mill GMA12R2120 Dia 1/2" SH 0.50 LOC 1.2500 OAL 3.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.1200 3.05mm SILVERBack

Part Number: GOR20073 ISO: GMA12R2120
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1199469
Vendor: Sussex Tool and Supply
$100.72

Description

GORILLA MILL 20073 DIA 1/2" SH 0.50 LOC 1.2500 OAL 3.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.1200 3.05MM SILVERBACK Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Corner Radius 0.1200 3.05MM
Helix Angle Variable
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
