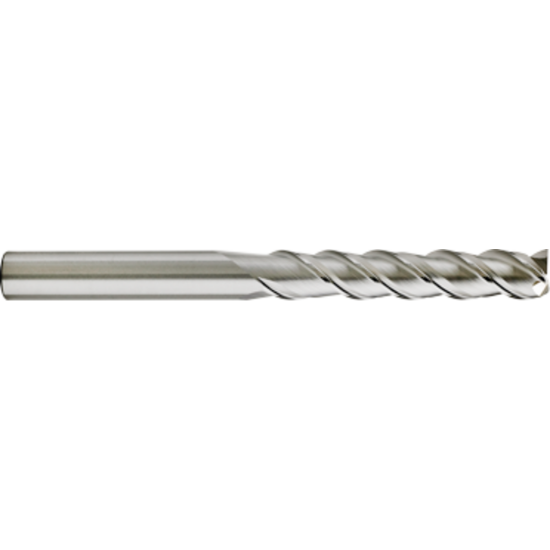

GORILLA MILL GMA12FXL3 DIA 1/2" SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMA12FXL3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20068
Delivery date: 3-5 days
$73.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Shipping State Wisconsin
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Length Type Extra Long
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Helix Angle Variable
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
