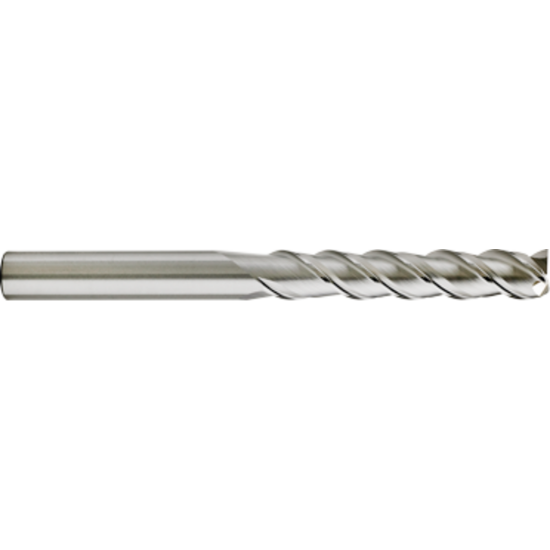

GORILLA MILL GMA12F3 DIA 1/2" SH 0.50 LOC 1.2500 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMA12F3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20065
Delivery date: 3-5 days
$45.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Wisconsin
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
Helix Angle Variable
Flutes/Inserts 3
Cutter Dia 0.5000 12.70MM - 1/2
Single/Double End Single End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
