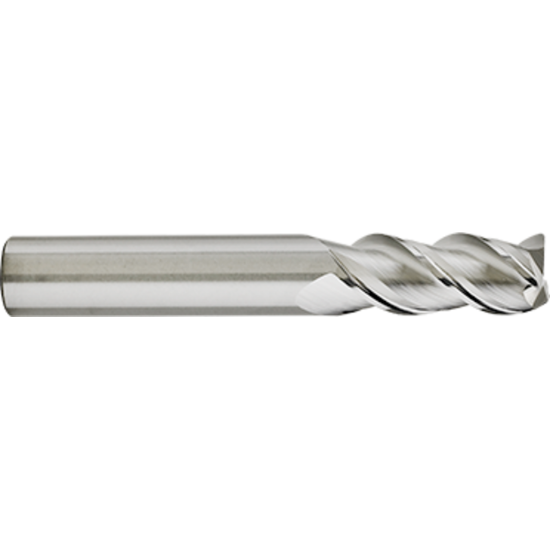

GORILLA MILL GMA1000MMRS3050 DIA 10MM SH 0.3937 LOC 0.6299 OAL 1.9685 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM SILVERBack

ISO: GMA1000MMRS3050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20029
Delivery date: 3-5 days
$36.82

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Wisconsin
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 1.9685 50.00MM
End Of Tool Shape Corner Radius
Length Type Stub
Helix Angle Variable
Length Of Cut 0.6300 16.00MM
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Machine Side Connection Size 0.3937 10.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
