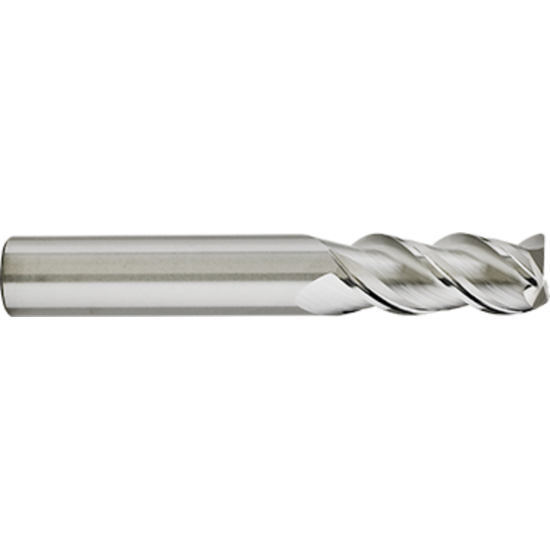

GORILLA MILL GMA0500MMRS3030 DIA 5MM SH 0.2362 LOC 0.3937 OAL 1.9685 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0118 0.30MM SILVERBack

ISO: GMA0500MMRS3030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20012
Delivery date: 3-5 days
$30.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Profile Milling, Slot Milling, Side Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Wisconsin
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Length Type Stub
Helix Angle Variable
Corner Radius 0.0118 0.30MM
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.3937 10.00MM
Inch/Metric Metric
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
