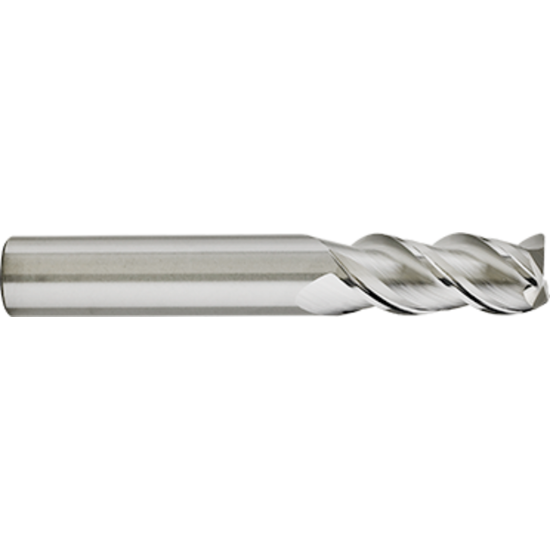

GORILLA MILL GMA0500MMR3050 DIA 5MM SH 0.2362 LOC 0.5906 OAL 2.5591 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM SILVERBack

ISO: GMA0500MMR3050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20011
Delivery date: 3-5 days
$32.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State Wisconsin
Dimensional Specifications
Corner Radius 0.0197 0.50MM
Flutes/Inserts 3
Length Of Cut 0.5906 15.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Overall Len 2.5591 65.00MM
Inch/Metric Metric
Single/Double End Single End
End Of Tool Shape Corner Radius
Helix Angle Variable
Length Type Standard
Machine Side Connection Size 0.2362 6.00MM
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
