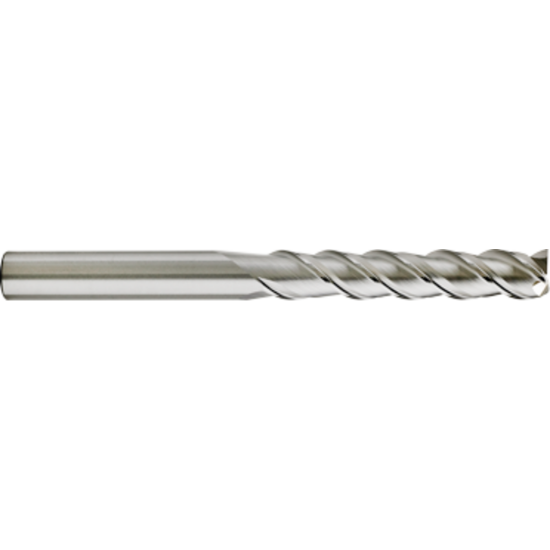

GORILLA MILL GMA0500MMF3 DIA 5MM SH 0.2362 LOC 0.5906 OAL 2.5591 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMA0500MMF3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20009
Delivery date: 3-5 days
$25.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Made In USA Yes
Shipping State Wisconsin
Dimensional Specifications
Length Of Cut 0.5906 15.00MM
Overall Len 2.5591 65.00MM
Flutes/Inserts 3
End Of Tool Shape Square
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Finisher
Inch/Metric Metric
Single/Double End Single End
Helix Angle Variable
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
