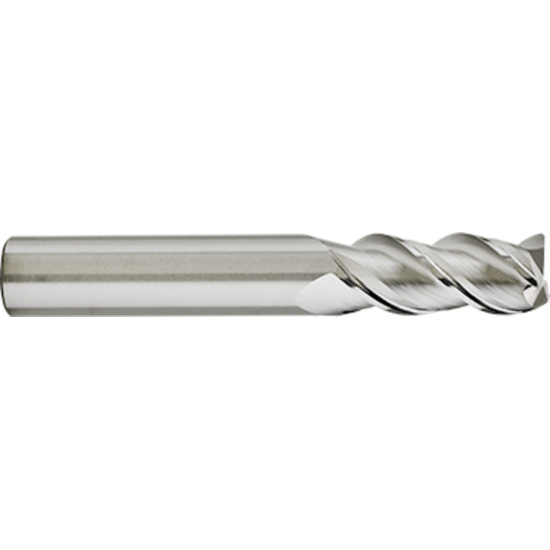

GORILLA MILL GMA0400MMR3050 DIA 4MM SH 0.2362 LOC 0.4724 OAL 1.9685 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM SILVERBack

ISO: GMA0400MMR3050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20007
Delivery date: 3-5 days
$32.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Copy Milling, Face Milling, Side Milling
Performance Rating High Performance
Package Size 1
Shipping State Wisconsin
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1574 4.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 1.9685 50.00MM
Length Of Cut 0.4724 12.00MM
Length Type Standard
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Size 0.2362 6.00MM
Corner Radius 0.0197 0.50MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
