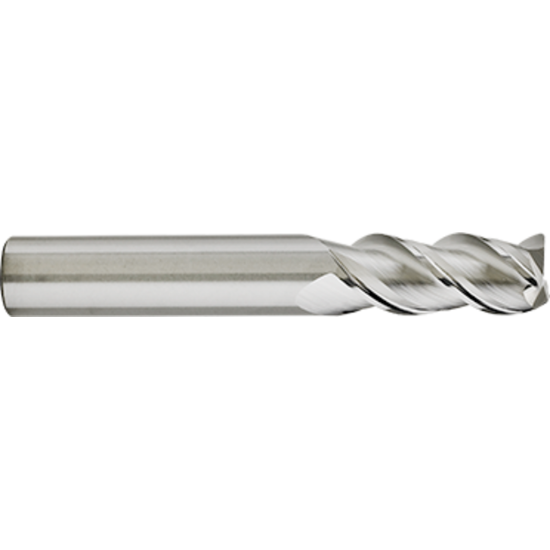

GORILLA MILL GMA0300MMRS3020 DIA 3MM SH 0.1181 LOC 0.3150 OAL 1.4961 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM SILVERBack

ISO: GMA0300MMRS3020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20004
Delivery date: 3-5 days
$25.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Wisconsin
Dimensional Specifications
Inch/Metric Metric
Machine Side Connection Size 0.1181 3.00MM
Single/Double End Single End
Cutter Dia 0.1181 3.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Corner Radius 0.0079 0.20MM
Length Of Cut 0.3150 8.00MM
Overall Len 1.4961 38.00MM
End Of Tool Shape Corner Radius
Length Type Stub
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
