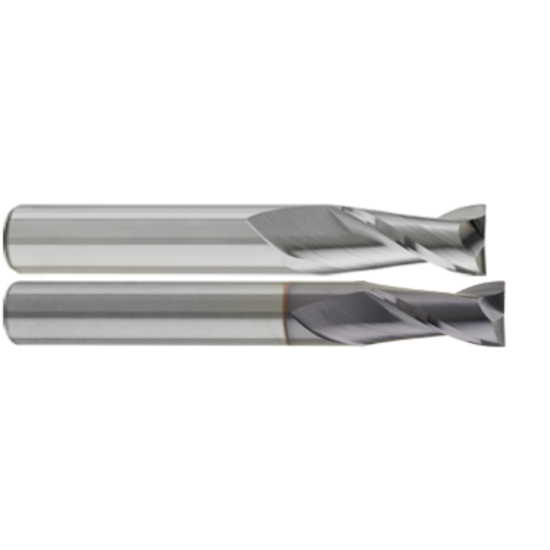

GORILLA MILL CEM964F2 DIA 9/64" SH 0.1875 LOC 0.50 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp PRIMATE

ISO: CEM964F2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR71464
Delivery date: 3-5 days
$9.26

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Wisconsin
Performance Rating General Performance
Dimensional Specifications
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Type Standard
End Of Tool Shape Square
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
