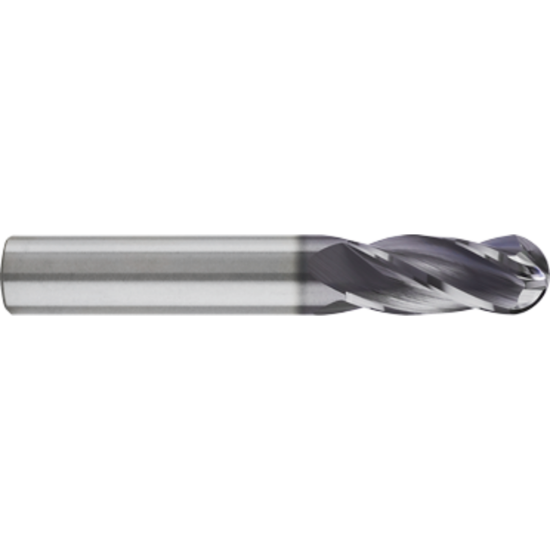

GORILLA MILL CEM732B4 DIA 7/32" SH 0.2500 LOC 0.6250 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM732B4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR71404
Delivery date: 3-5 days
$15.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Made In USA Yes
Performance Rating General Performance
Package Size 1
Shipping State Wisconsin
Dimensional Specifications
Helix Angle 30°
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.2500 6.35MM
Cutter Dia 0.2188 5.56MM - 7/32
Length Of Cut 0.6250 15.88MM
Flutes/Inserts 4
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
