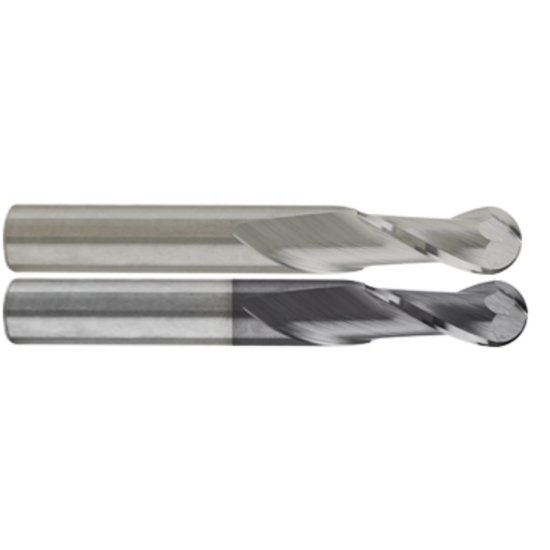

GORILLA MILL CEM516B2 DIA 5/16" SH 0.3125 LOC 0.8750 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM516B2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR71203
Delivery date: 3-5 days
$18.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Profile Milling, Side Milling, Ball Milling, Copy Milling
Made In USA Yes
Performance Rating General Performance
Shipping State Wisconsin
Dimensional Specifications
Flutes/Inserts 2
Length Of Cut 0.8750 22.23MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Ball Nose
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
