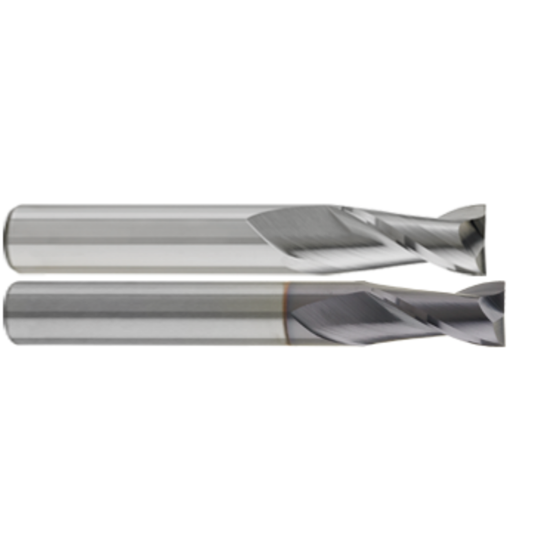

GORILLA MILL CEM38FXL2 DIA 3/8" SH 0.3750 LOC 2.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp PRIMATE

ISO: CEM38FXL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR71161
Delivery date: 3-5 days
$27.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Shipping State Wisconsin
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Finisher
Inch/Metric Inch
End Of Tool Shape Square
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
