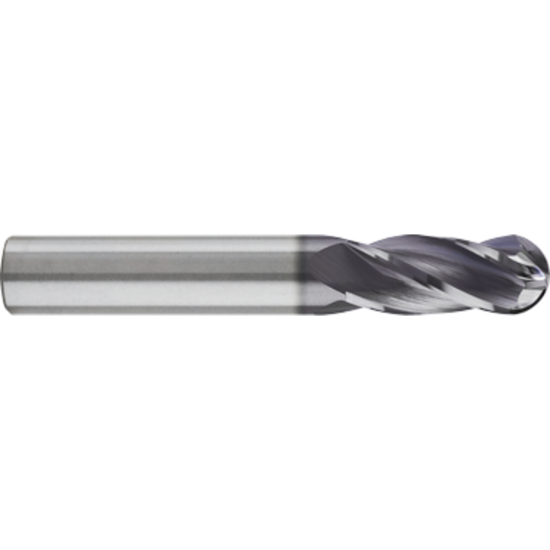

GORILLA MILL CEM34BXL4 DIA 3/4" SH 0.7500 LOC 2.00 OAL 6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM34BXL4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR71008
Delivery date: 3-5 days
$137.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Wisconsin
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Overall Len 6.0000 152.40MM
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
