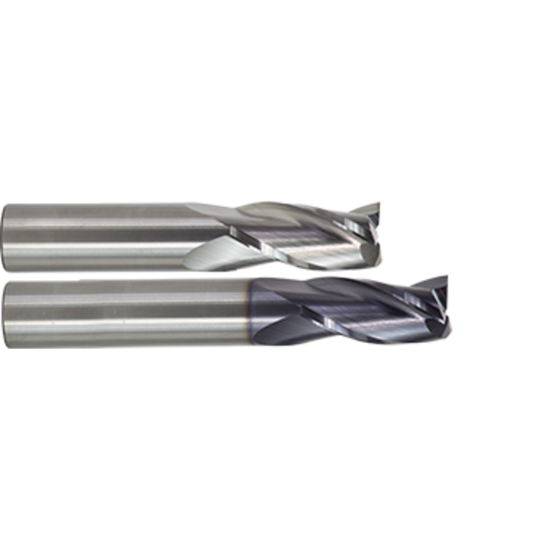

GORILLA MILL CEM2500MMF3 DIA 25MM SH 0.9843 LOC 1.4961 OAL 3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp PRIMATE

ISO: CEM2500MMF3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70825
Delivery date: 3-5 days
$137.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Shipping State Wisconsin
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.9370 100.00MM
Length Type Standard
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Flutes/Inserts 3
End Of Tool Shape Square
Length Of Cut 1.4961 38.00MM
Helix Angle 30°
Cutter Dia 0.9844 25.00MM - 63/64
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
