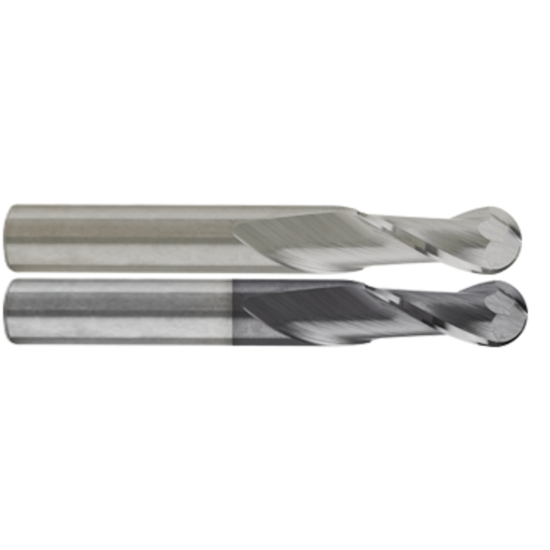

GORILLA MILL CEM18BL2 DIA 1/8" SH 0.1250 LOC 0.7500 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM18BL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70696
Delivery date: 3-5 days
$12.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling, Side Milling, Ball Milling, Ball Slot Milling
Package Size 1
Made In USA Yes
Shipping State Wisconsin
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Length Of Cut 0.7500 19.05MM
Length Type Long
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
