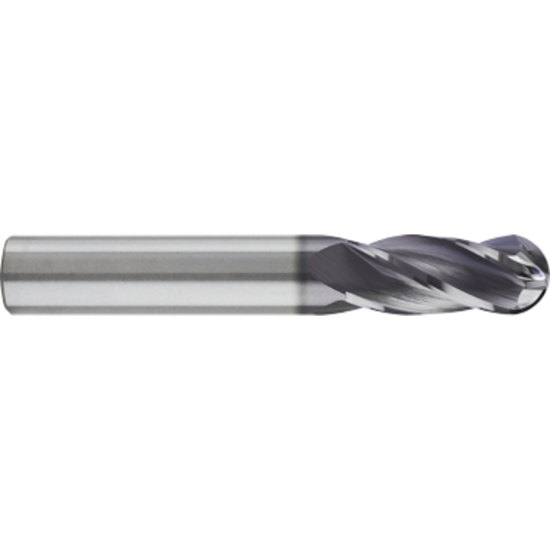

GORILLA MILL CEM18B4 DIA 1/8" SH 0.1250 LOC 0.50 OAL 1.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM18B4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70693
Delivery date: 3-5 days
$8.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Shipping State Wisconsin
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Flutes/Inserts 4
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 1.5000 38.10MM
End Of Tool Shape Ball Nose
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
