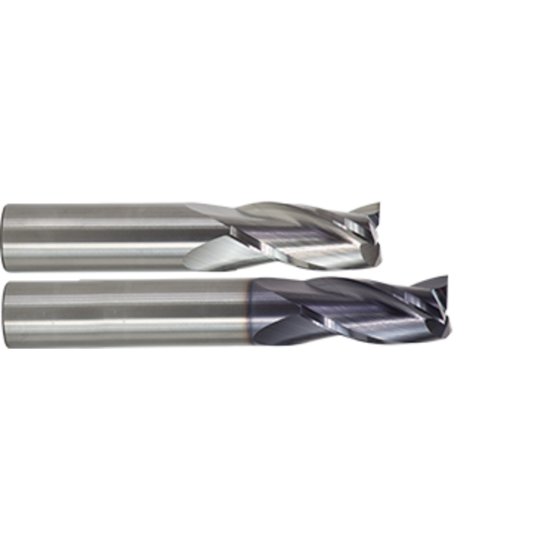

Picture of Gorilla Mill CEM1600mmF3TiCN Dia 16mm SH 0.6299 LOC 1.2598 OAL 3.5039 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp PRIMATE

Gorilla Mill CEM1600mmF3TiCN Dia 16mm SH 0.6299 LOC 1.2598 OAL 3.5039 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp PRIMATE

Part Number: GOR70626 ISO: CEM1600MMF3TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1198220
Vendor: Sussex Tool and Supply
$88.26
GORILLA MILL 70626 DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.5039 End Mill Standard Flute High Helix Carbide TiCN Single End Square Sharp PRIMATE Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 3.5039 89.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 3
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.2600 32.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
