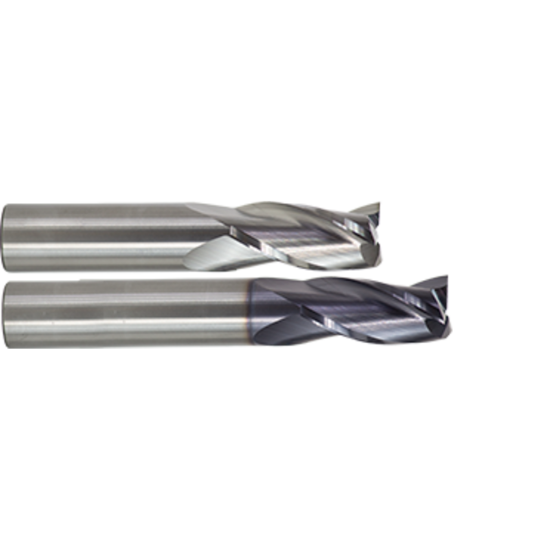

GORILLA MILL CEM1600MMF3 DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.5039 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp PRIMATE

ISO: CEM1600MMF3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70624
Delivery date: 3-5 days
$58.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Performance Rating General Performance
Shipping State Wisconsin
Package Size 1
Dimensional Specifications
Length Of Cut 1.2600 32.00MM
Length Type Standard
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Cutter Style Carbide Finisher
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
