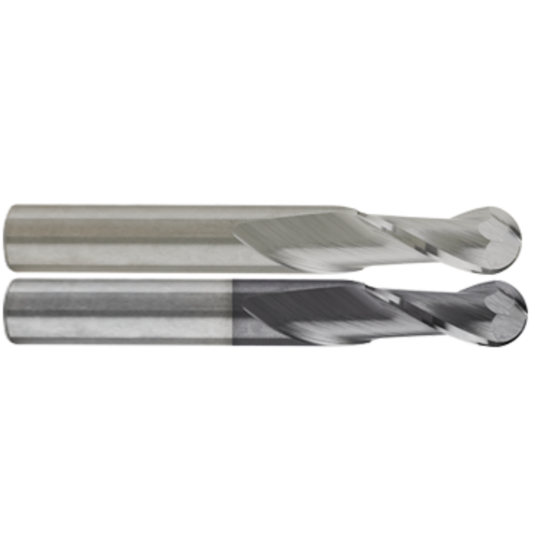

GORILLA MILL CEM14BL2 DIA 1/4" SH 0.2500 LOC 1.1250 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM14BL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70534
Delivery date: 3-5 days
$19.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Ball Slot Milling, Side Milling
Performance Rating General Performance
Package Size 1
Made In USA Yes
Shipping State Wisconsin
Dimensional Specifications
End Of Tool Shape Ball Nose
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Flutes/Inserts 2
Length Type Long
Helix Angle 30°
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 3.0000 76.20MM
Length Of Cut 1.1250 28.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
