  • GORILLA MILL CEM12BL4 DIA 1/2" SH 0.50 LOC 1.50 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

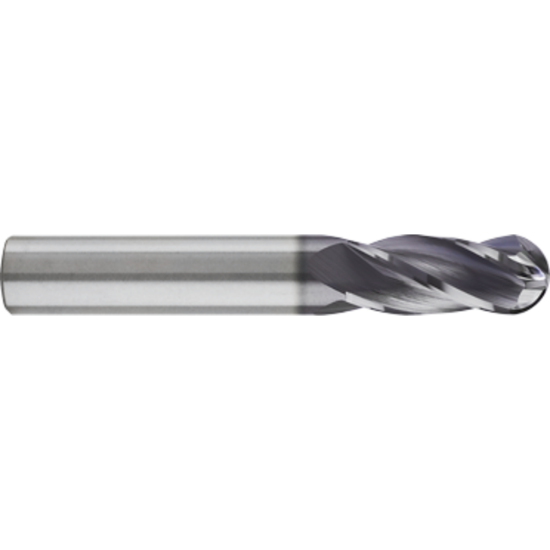

Picture of GORILLA MILL CEM12BL4 DIA 1/2" SH 0.50 LOC 1.50 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

GORILLA MILL CEM12BL4 DIA 1/2" SH 0.50 LOC 1.50 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose PRIMATE

ISO: CEM12BL4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70408
Delivery date: 3-5 days
$45.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Milling, Ball Slot Milling, Side Milling, Profile Milling
Performance Rating General Performance
Shipping State Wisconsin
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Ball Nose
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.0000 101.60MM
Helix Angle 30°
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.5000 38.10MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Flutes/Inserts 4
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
