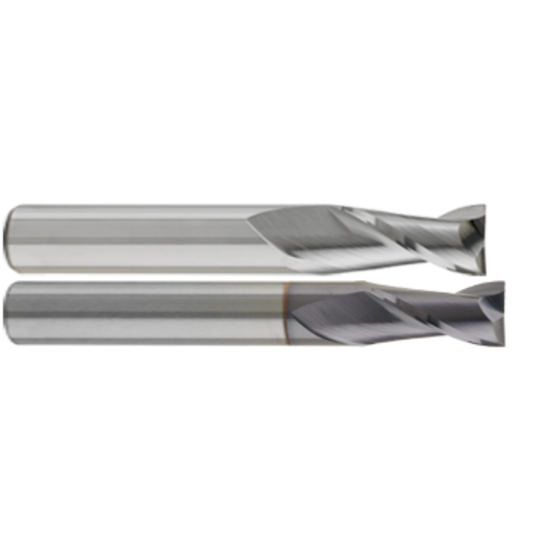

GORILLA MILL CEM10FXXL2 DIA 1" SH 1.00 LOC 3.00 OAL 6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp PRIMATE

ISO: CEM10FXXL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70252
Delivery date: 3-5 days
$244.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Extra Long
Single/Double End Single End
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 6.0000 152.40MM
Helix Angle 30°
Flutes/Inserts 2
Length Of Cut 3.0000 76.20MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
