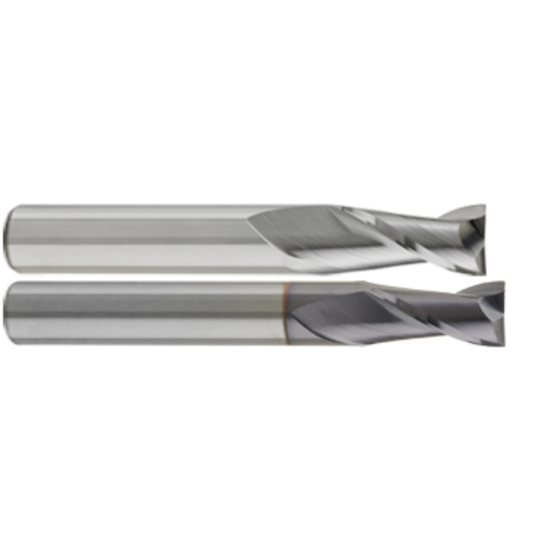

GORILLA MILL CEM0800MMFS2 DIA 8MM SH 0.3150 LOC 0.4724 OAL 1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp PRIMATE

ISO: CEM0800MMFS2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR70135
Delivery date: 3-5 days
$13.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Wisconsin
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Stub
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 1.9685 50.00MM
Cutter Style Carbide Finisher
Machine Side Connection Size 0.3150 8.00MM
End Of Tool Shape Square
Flutes/Inserts 2
Length Of Cut 0.4724 12.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
