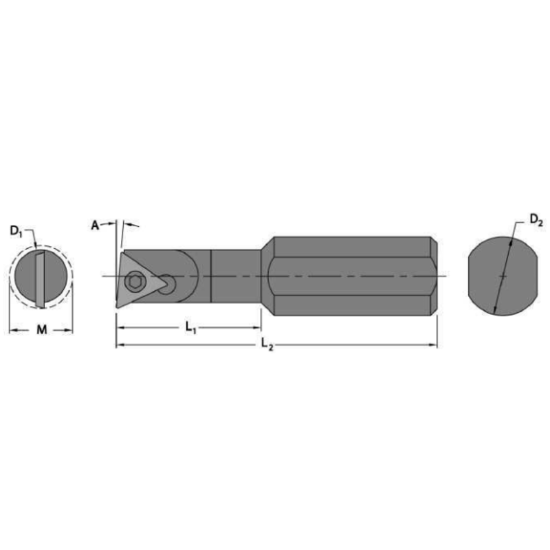

Picture of EVEREDE Tool SC3070 Triangle Boring Bar Dia0.6250 Positive 0.5000 12.70MM - 1/2 Cutter Dia

EVEREDE Tool SC3070 Triangle Boring Bar Dia0.6250 Positive 0.5000 12.70MM - 1/2 Cutter Dia

ANSI: SC3070

ISO: SC3070

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00515
Delivery date: 3-5 days
$121.72
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 21
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar
Overall Len 4.2500 107.95MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Min Bore 0.5630
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Insert Style TP
Inter/Extern Internal
