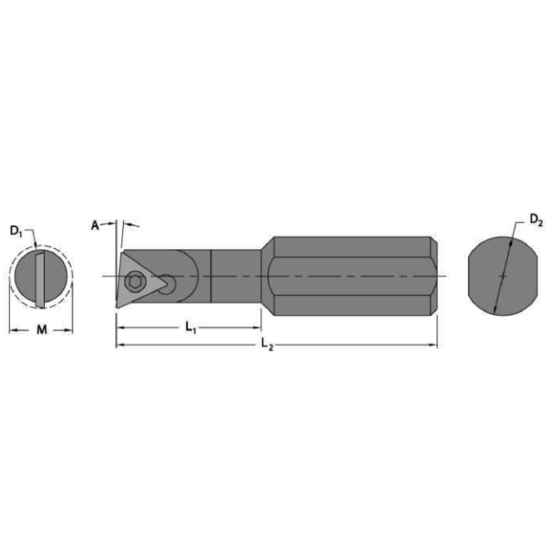

Picture of EVEREDE Tool SC3040L Triangle Boring Bar Dia0.6250 Positive 0.3750 9.53MM - 3/8 Cutter Dia

EVEREDE Tool SC3040L Triangle Boring Bar Dia0.6250 Positive 0.3750 9.53MM - 3/8 Cutter Dia

ANSI: SC3040L

ISO: SC3040L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00504
Delivery date: 3-5 days
$119.31
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Int.Turning
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 95°
Min Bore 0.4380
Insert Size Ic 21
Overall Len 3.7500 95.25MM
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Style TP
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
