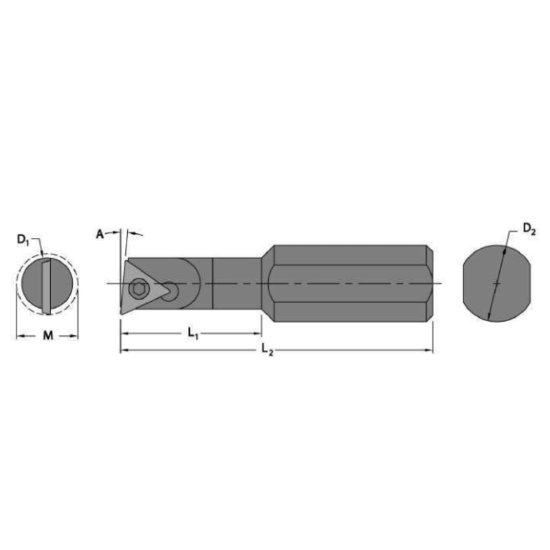

Picture of EVEREDE Tool SB2525 Triangle Boring Bar Dia0.6250 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

EVEREDE Tool SB2525 Triangle Boring Bar Dia0.6250 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: SB2525

ISO: SB2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00369
Delivery date: 3-5 days
$113.23
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Lead Angle 90°
Machine Side Connection Type Boring Bar
Min Bore 0.3000
Insert Size Ic 07 "13"
Overall Len 4.0000 101.60MM
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style TD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
