EVEREDE Tool SA1445L 80.0 ° Boring Bar Dia0.3750 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: SA1445L

ISO: SA1445L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00212
Delivery date: 3-5 days
$116.87
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1

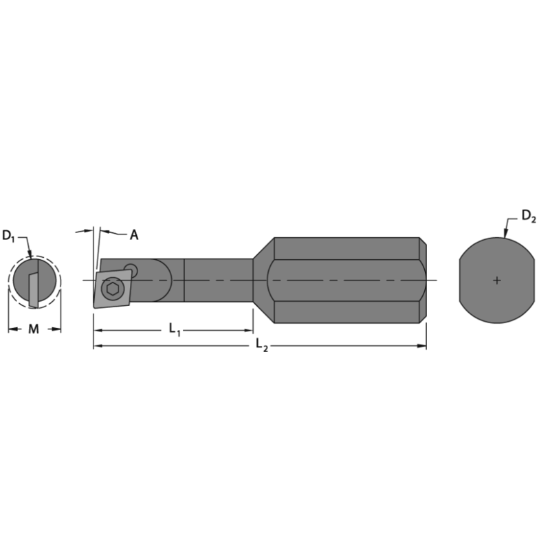

Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Insert Size Ic 4T "12"
Lead Angle 90°
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Min Bore 0.3000
Overall Len 2.5000 63.50MM
Neck Length 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Inter/Extern Internal
Insert Style CD
