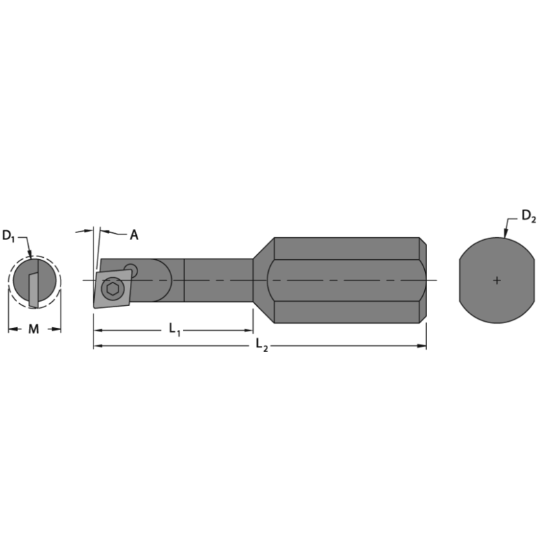

Picture of EVEREDE Tool SA1415 80.0 ° Boring Bar Dia0.3750 Positive 0.2030 5.16MM Cutter Dia

EVEREDE Tool SA1415 80.0 ° Boring Bar Dia0.3750 Positive 0.2030 5.16MM Cutter Dia

ANSI: SA1415

ISO: SA1415

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00199
Delivery date: 3-5 days
$116.87
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.2500 57.15MM
Min Bore 0.2440
Lead Angle 90°
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Cutter Dia 0.2030 5.16MM
Insert Size Ic 4T "12"
Neck Length 0.5000 12.70MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
Insert Style CD
Hand R/L Right
