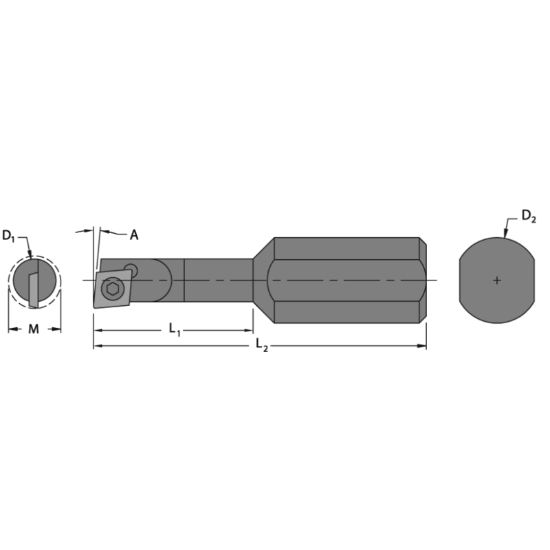

Picture of EVEREDE Tool SA1405 80.0 ° Boring Bar Dia0.3750 Positive 0.1800 4.57MM - #15 Cutter Dia

EVEREDE Tool SA1405 80.0 ° Boring Bar Dia0.3750 Positive 0.1800 4.57MM - #15 Cutter Dia

ANSI: SA1405

ISO: SA1405

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00195
Delivery date: 3-5 days
$116.87
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.2500 57.15MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Min Bore 0.2080
Insert Size Ic 4T "12"
Cutter Dia 0.1800 4.57MM - #15
Neck Length 1.0000 25.40MM
Tool Material Steel
Lead Angle 95°
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CD
