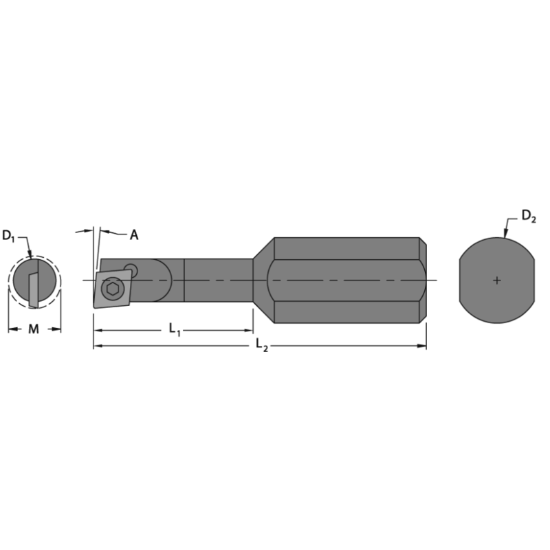

Picture of EVEREDE Tool SA1400L 80.0 ° Boring Bar Dia0.3750 Positive 0.1800 4.57MM - #15 Cutter Dia

EVEREDE Tool SA1400L 80.0 ° Boring Bar Dia0.3750 Positive 0.1800 4.57MM - #15 Cutter Dia

ANSI: SA1400L

ISO: SA1400L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00194
Delivery date: 3-5 days
$116.87
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Cutter Dia 0.1800 4.57MM - #15
Tool Material Steel
Machine Side Connection Size 0.3750 9.53MM
Machine Side Connection Type Boring Bar
Insert Size Ic 4T "12"
Min Bore 0.2080
Neck Length 0.5000 12.70MM
Overall Len 2.2500 57.15MM
Lead Angle 95°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Inter/Extern Internal
