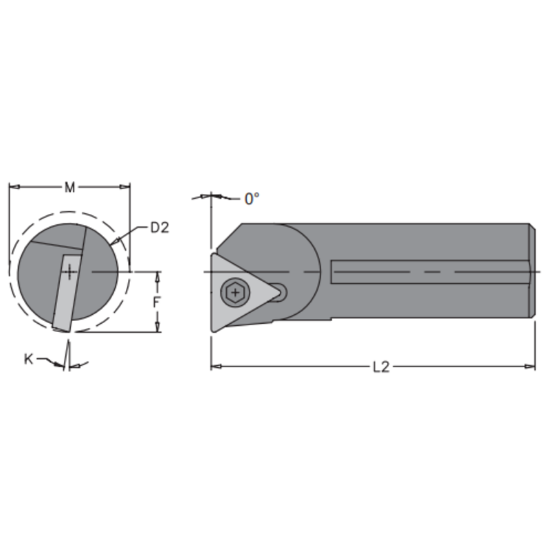

Picture of EVEREDE Tool S03G STFDR-1.3 Triangle Boring Bar Dia0.1875 Positive 0.1870 4.75MM Cutter Dia

EVEREDE Tool S03G STFDR-1.3 Triangle Boring Bar Dia0.1875 Positive 0.1870 4.75MM Cutter Dia

ANSI: S03G STFDR-1.3

ISO: S03G STFDR-1.3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01817
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.1875 4.76MM
Min Bore 0.2700
Cutter Dia 0.1870 4.75MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Lead Angle 95°
Insert Size Ic 1.30.8
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Hand R/L Right
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
