  • EVEREDE Tool IND-18-2-125 Triangle 120.0°, Countersink End Mill Cylindrical 0.5000 Positive 0.8750 22.23MM - 7/8 Cutter Dia

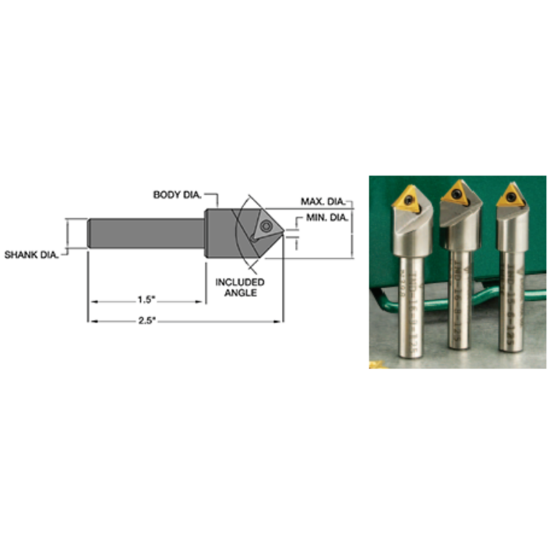

Picture of EVEREDE Tool IND-18-2-125 Triangle 120.0°, Countersink End Mill Cylindrical 0.5000 Positive 0.8750 22.23MM - 7/8 Cutter Dia

EVEREDE Tool IND-18-2-125 Triangle 120.0°, Countersink End Mill Cylindrical 0.5000 Positive 0.8750 22.23MM - 7/8 Cutter Dia

ANSI: IND-18-2-125

ISO: IND-18-2-125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01293
Delivery date: 3-5 days
$121.22
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Application Countersinking
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Max 0.7410 18.82MM
Insert Size Ic 21
Machine Side Connection Type Cylindrical
Chamfer Angle 120.0°
Cutter Dia 0.8750 22.23MM - 7/8
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Dia Min 0.1250 3.18MM - 1/8
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
