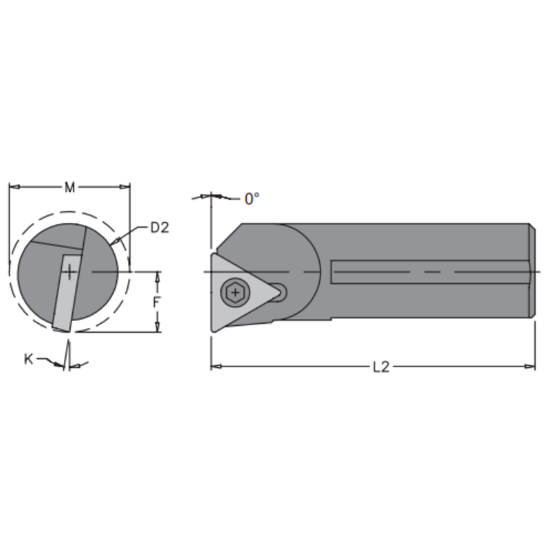

Picture of EVEREDE Tool E10S STFCL-3 Triangle Boring Bar Dia0.6250 Positive 0.6250 15.88MM - 5/8 Cutter Dia

EVEREDE Tool E10S STFCL-3 Triangle Boring Bar Dia0.6250 Positive 0.6250 15.88MM - 5/8 Cutter Dia

ANSI: E10S-STFCL-3

ISO: E10S STFCL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01757
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Turning
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "32"
Lead Angle 91°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Tool Material Carbide
Overall Len 10.0000 254.00MM
Machine Side Connection Type Boring Bar
Min Bore 0.7700
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Left
Insert Style TC
