  • EVEREDE Tool CHM-938-45 Parallelogram 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.7210 43.71MM Cutter Dia

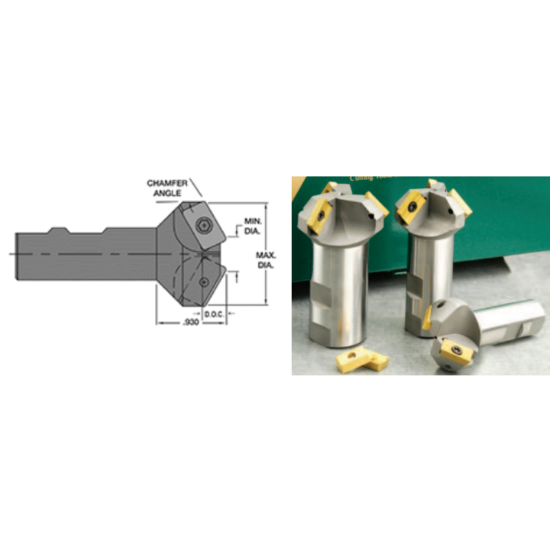

Picture of EVEREDE Tool CHM-938-45 Parallelogram 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.7210 43.71MM Cutter Dia

EVEREDE Tool CHM-938-45 Parallelogram 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.7210 43.71MM Cutter Dia

ANSI: CHM-938-45

ISO: CHM-938-45

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01273
Delivery date: 3-5 days
$133.03

Details

CHAMFER MILL 2 CORNER A STYLE INSERT. TONS OF GRADES AVAILAVBLE. ISO MILLING INSERT, TONS OF CHOICES FOR GRADES AND EDGE PREPS.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Insert/Tool Tool
Application Chamfering
Package Size 1
Dimensional Specifications
Cut Dia Max 1.7210 43.71MM
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 3.2000 81.28MM
Flutes/Inserts 3
Depth Of Cut Max 0.3910
Cut Dia Min 0.9380 23.83MM
Cutter Dia 1.7210 43.71MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
