  • EVEREDE Tool CHM-688-45 Parallelogram 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4710 37.36MM Cutter Dia

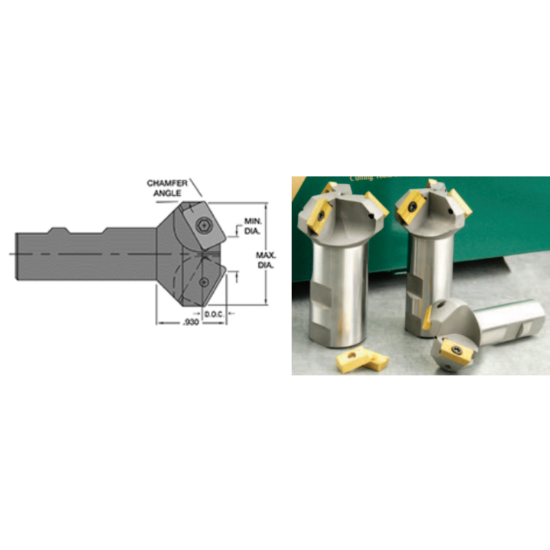

Picture of EVEREDE Tool CHM-688-45 Parallelogram 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4710 37.36MM Cutter Dia

EVEREDE Tool CHM-688-45 Parallelogram 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4710 37.36MM Cutter Dia

ANSI: CHM-688-45

ISO: CHM-688-45

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01269
Delivery date: 3-5 days
$121.82

Details

CHAMFER MILL 2 CORNER A STYLE INSERT. TONS OF GRADES AVAILAVBLE. ISO MILLING INSERT, TONS OF CHOICES FOR GRADES AND EDGE PREPS.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Chamfering
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3910
Cut Dia Min 0.6880 17.48MM
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 1.4710 37.36MM
Tool Material Steel
Cutter Dia 1.4710 37.36MM
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Insert Size Ic 16
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
