  • EVEREDE Tool CHM-688-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4140 35.92MM Cutter Dia

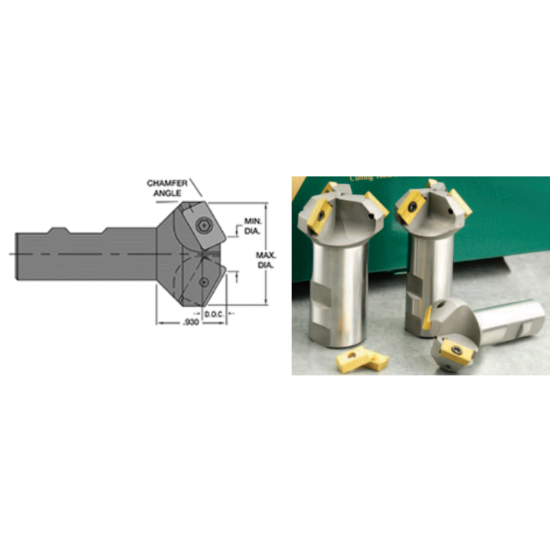

Picture of EVEREDE Tool CHM-688-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4140 35.92MM Cutter Dia

EVEREDE Tool CHM-688-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4140 35.92MM Cutter Dia

ANSI: CHM-688-41

ISO: CHM-688-41

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01268
Delivery date: 3-5 days
$121.82

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE ISO 16MM INSERT

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Package Size 1
Application Chamfering
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.4180
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 1.4140 35.92MM
Cut Dia Min 0.6880 17.48MM
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 16
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Cut Dia Max 1.4140 35.92MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
