  • EVEREDE Tool CHM-500-60 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4580 37.03MM Cutter Dia

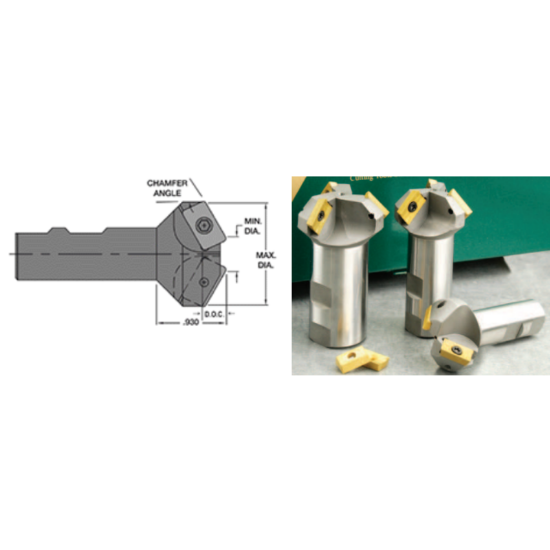

Picture of EVEREDE Tool CHM-500-60 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4580 37.03MM Cutter Dia

EVEREDE Tool CHM-500-60 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4580 37.03MM Cutter Dia

ANSI: CHM-500-60

ISO: CHM-500-60

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01267
Delivery date: 3-5 days
$121.82
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Shipping State Illinois
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.4580 37.03MM
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 1.4580 37.03MM
Overall Len 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Depth Of Cut Max 0.2770
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
