  • EVEREDE Tool CHM-1.438-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.1640 54.97MM Cutter Dia

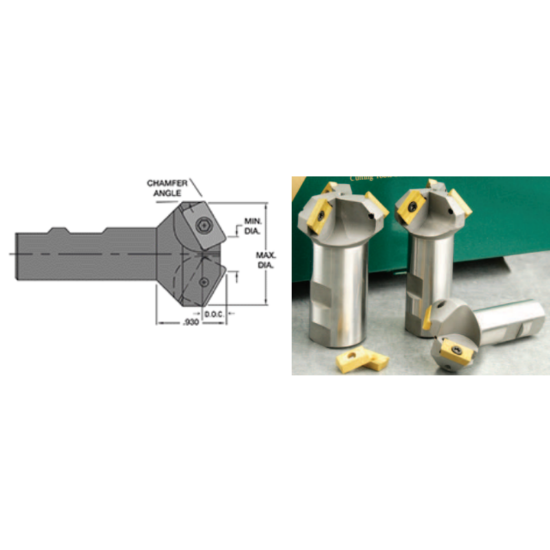

Picture of EVEREDE Tool CHM-1.438-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.1640 54.97MM Cutter Dia

EVEREDE Tool CHM-1.438-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.1640 54.97MM Cutter Dia

ANSI: CHM-1.438-41

ISO: CHM-1.438-41

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01264
Delivery date: 3-5 days
$208.80

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE ISO 16MM INSERT

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Package Size 1
Made In USA No
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Machine Side Connection Size 1.5000 38.10MM
Overall Len 3.6000 91.44MM
Insert Size Ic 16
Machine Side Connection Type Weldon
Cut Dia Min 1.4380 36.53MM
Cutter Dia 2.1640 54.97MM
Cut Dia Max 2.1640 54.97MM
Depth Of Cut Max 0.4180
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
