  • EVEREDE Tool CHM-1.000-30 Parallelogram 30.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.5530 39.45MM Cutter Dia

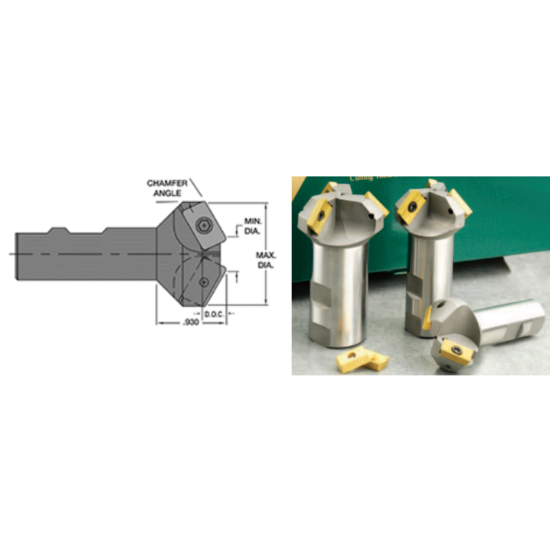

Picture of EVEREDE Tool CHM-1.000-30 Parallelogram 30.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.5530 39.45MM Cutter Dia

EVEREDE Tool CHM-1.000-30 Parallelogram 30.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.5530 39.45MM Cutter Dia

ANSI: CHM-1.000-30

ISO: CHM-1.000-30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01258
Delivery date: 3-5 days
$133.03

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE ISO 16MM INSERT

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4790
Cut Dia Min 1.0000 25.40MM
Cut Dia Max 1.5530 39.45MM
Tool Material Steel
Machine Side Connection Type Weldon
Overall Len 3.2000 81.28MM
Flutes/Inserts 3
Insert Size Ic 16
Cutter Dia 1.5530 39.45MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
