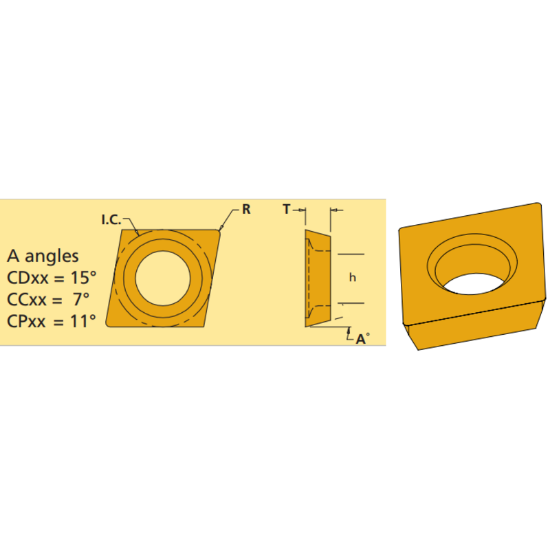

EVEREDE Tool CDCD-02 CT7 80.0 ° Positive Insert

ANSI: CDHB1206X0 CT7

ISO: CDCD-02 CT7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE04050
Delivery date: 3-5 days
$12.28

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet P05 steel, stainless and cast iron finishing application.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Finishing, Semi Finishing
Insert Type Positive
Package Size 10
Grade CT7
Insert/Tool Insert
Application Turning Insert
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Gray Iron, Stainless Steel
Corner Radius 0.0020 0.05MM
Insert Size Ic 4T "12"
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
