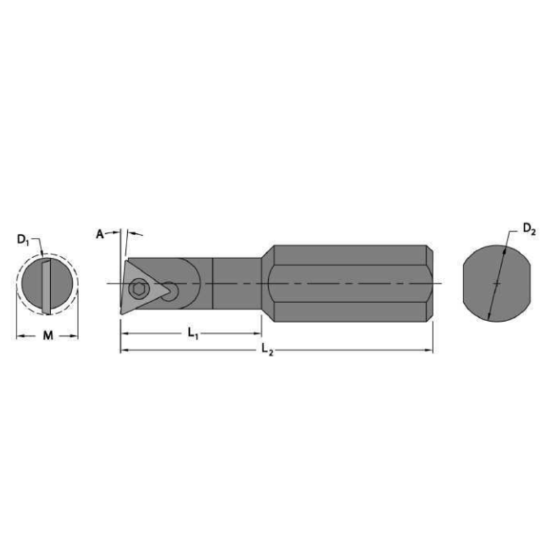

Picture of EVEREDE Tool CB2635L Triangle Boring Bar Dia0.6250 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

EVEREDE Tool CB2635L Triangle Boring Bar Dia0.6250 Positive 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: CB2635L

ISO: CB2635L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00421
Delivery date: 3-5 days
$261.12
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Application Int.Turning
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 07 "13"
Tool Material Carbide
Overall Len 4.0000 101.60MM
Machine Side Connection Type Boring Bar
Min Bore 0.3000
Lead Angle 90°
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Style TD
Hand R/L Left
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
