Picture of EVEREDE Tool CB2305CH Triangle Boring Bar Dia0.3125 Positive 0.3120 7.92MM Cutter Dia

EVEREDE Tool CB2305CH Triangle Boring Bar Dia0.3125 Positive 0.3120 7.92MM Cutter Dia

ANSI: CB2305CH

ISO: CB2305CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE00288
Delivery date: 3-5 days
$226.75
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive

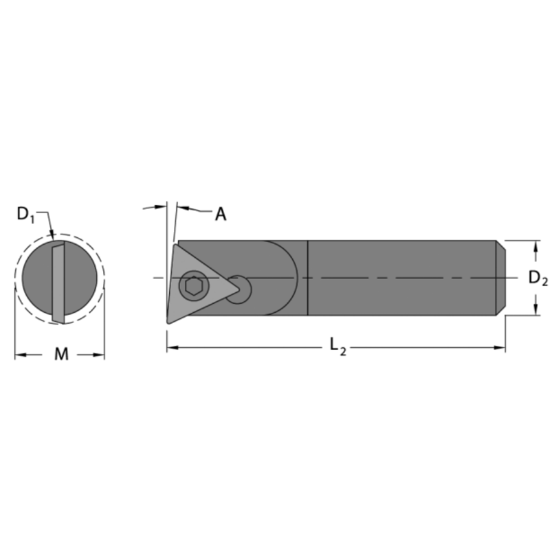

Dimensional Specifications
Lead Angle 90°
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 4.0000 101.60MM
Insert Size Ic 07 "13"
Cutter Dia 0.3120 7.92MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Tool Material Steel
Min Bore 0.3600
Cutting & Machining Properties
Inter/Extern Internal
Cool Sply Type Through
Hand R/L Right
Insert Style TD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
