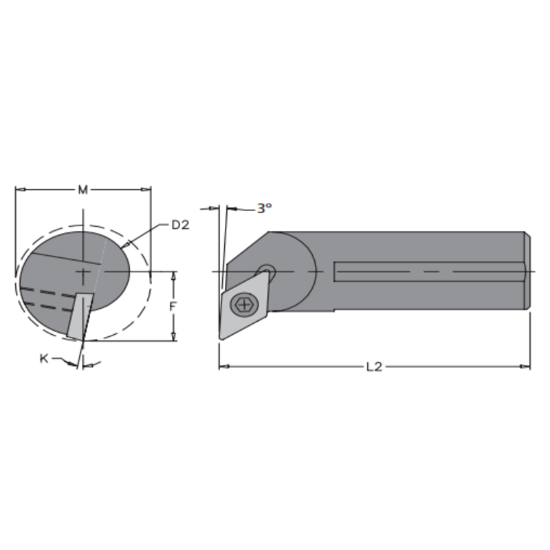

Picture of EVEREDE Tool A12S SDUCL-3 55.0 ° Boring Bar Dia0.7500 Positive 0.7500 19.05MM - 3/4 Cutter Dia

EVEREDE Tool A12S SDUCL-3 55.0 ° Boring Bar Dia0.7500 Positive 0.7500 19.05MM - 3/4 Cutter Dia

ANSI: A12S SDUCL-3

ISO: A12S SDUCL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: EVE01468
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Application Int.Turning
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Lead Angle 93°
Overall Len 10.0000 254.00MM
Insert Size Ic 11 "32"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Min Bore 0.9800
Clearance Angle 30.0°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Inter/Extern Internal
Cool Sply Type Through
Insert Style DC
Coolant Thru Yes
